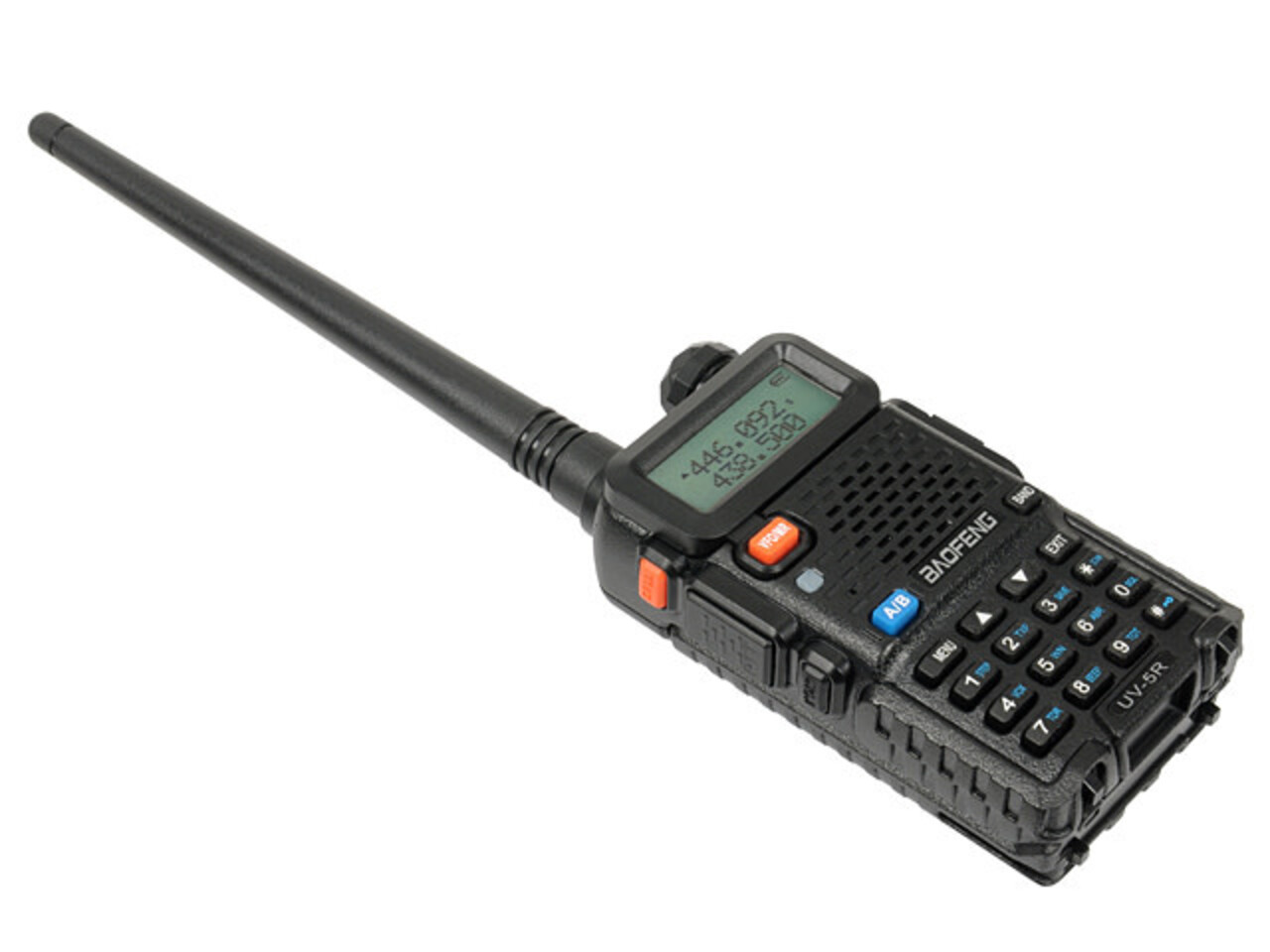

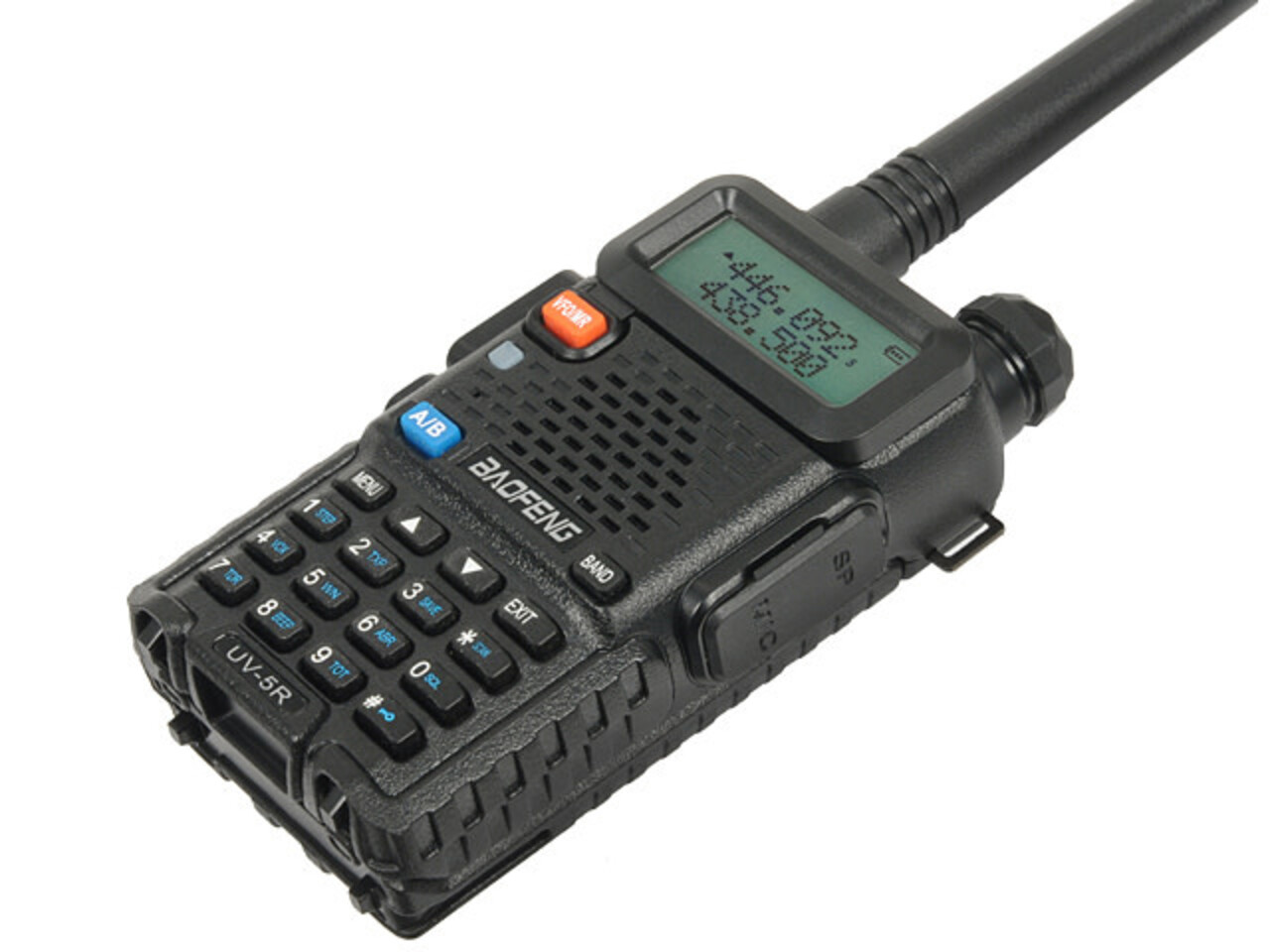

Baofeng UV-5R Portofoon









The Baofeng UV-5R Portofoon is a compact handheld radioscanner transceiver that delivers 4 watts in the frequency range of 136-174/420-450 MHz.
The Baofeng is one of the most used walkie-talkies in our airsoft world and this has a reason, namely, that this price quality is one of the best walkie-talkies available. This walkie-talkie is among others equipped with a battery saver function, VOX, DCS/CTCSS encoding, key lock and a built-in torch. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz.
Furthermore, this radio is supplied with an ANT5 SMA-J flexible antenna, BL-5 Li-ion battery (7.4V 1800 mAh), belt clip, wrist strap, AC adapter, drop-in charging tray and a headset with PTT function.
- 128 Channels 50 CTCSS and 104 CDCSS Dual-Band Display, Dual Freq. Display, Dual-Standby, A/B Band Independent Operation | High/Low Transmit Power Adjustable: Busy Channel Lockout (BCLO)
- Keypad Lock: Channel Step: 2.5/5/6.25/10/12.5/25KHz | Voice Companding: 50 CTCSS/ 104DCS code tone search
- Tri-color backlight selectable: 0-9 ranks VOX adjustable | Large LCD screen
- Emergency call: 25KHz/12.5KHz switchable LED torch: high/low RF power switchable
Functions
1. Frequency range: 136-174 / 420-450 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1Watt
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX function
6. 1750Hz Brust Tone
8. LED Flashlight
9. Large LCD Display
10. High / Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alarm
13. Low Battery Alarm
14. Battery saving .
15. Time-out Timer
16. Keypad lock
17. Monitor channel
18. Kanaalstap: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET
Specifications:
- Output: 4W/1W
- Channel: 128
- Frequency stability: ± 2.5ppm
- Antenna: Dual band High gain antenna
- Antenna impedance: 50?
- Operating voltage: DC 7.4V
- Wide/Narrow Band (25kHz/12.5kHz)
Product specifications
- Article number
- 28-020-108
- Weight
- 504
- Brand
- Baofeng
- Type
- UV-5R
- Range
- 15 to 20 km
- Channels
- 128 Channels 50 CTCSS and 104 CDCSS
- Sub channels
- -
- Frequency range
- 136-174 / 420-450 MHz
- UHF
- Yes
- VHF
- Yes
- Headphone included
- Yes, Kenwood connection
- Digital
- No
- Analog
- Yes
- Water resistant
- Splash Waterproof
- Dust resistant
- Yes
- Shockproof
- Yes
- Emergency button
- Yes
- Key lock
- Yes
- Vibration
- -
- Roger acknowledgement tone
- Yes
- Battery status display
- Yes
- Screen illumination
- Yes
- Dual channel scan function
- Yes
- Standby time
- -
- Talk time
- -
- Battery charging time
- -
